When sourcing SAE 100R2 hose one-piece fittings, buyers are typically hydraulic hose assembly factories, heavy equipment OEMs, industrial distributors, and project contractors handling medium-to-high pressure hydraulic systems.

Unlike 100R1, SAE 100R2 features double steel wire braid reinforcement, meaning the fitting stem structure, ferrule compression design, and crimp tolerance requirements are more demanding.

Huatai manufactures precision-engineered one-piece fittings optimized specifically for SAE 100R2 hose applications, with stable large-volume production capacity for bulk procurement and OEM supply programs.

1. Understanding SAE 100R2 Hose Requirements

SAE 100R2 hose is designed for:

• Higher working pressure than 100R1

• More demanding impulse cycles

• Heavy-duty hydraulic systems

Common industries include:

• Construction equipment manufacturing

• Mining machinery

• Oil & gas hydraulic systems

• Industrial presses

• Forestry equipment

Because of double braid reinforcement, the crimp profile must ensure:

• Proper braid penetration

• Even ferrule compression

• No inner tube collapse

• No wire damage during crimping

Improper fittings will lead to:

Hose burst under pressure

• Pull-off failures

• Reduced service life

• Field warranty claims

Huatai one-piece fittings are engineered to match 100R2 structural behavior under high-pressure hydraulic operation.

2. Why One-Piece Fittings Are Preferred for High-Volume Assembly

For bulk hose assembly workshops producing thousands of units monthly, one-piece fittings deliver operational advantages:

Faster Production Speed

Integrated ferrule eliminates component pairing and reduces assembly steps.

Lower Labor Cost per Unit

Fewer handling stages mean higher shift output.

Reduced Assembly Errors

No mismatched ferrule risk in large SKU inventories.

Consistent Crimp Performance

Designed for uniform compression across high-volume runs.

For distributors handling wholesale container orders, simplified SKU management improves inventory turnover efficiency.

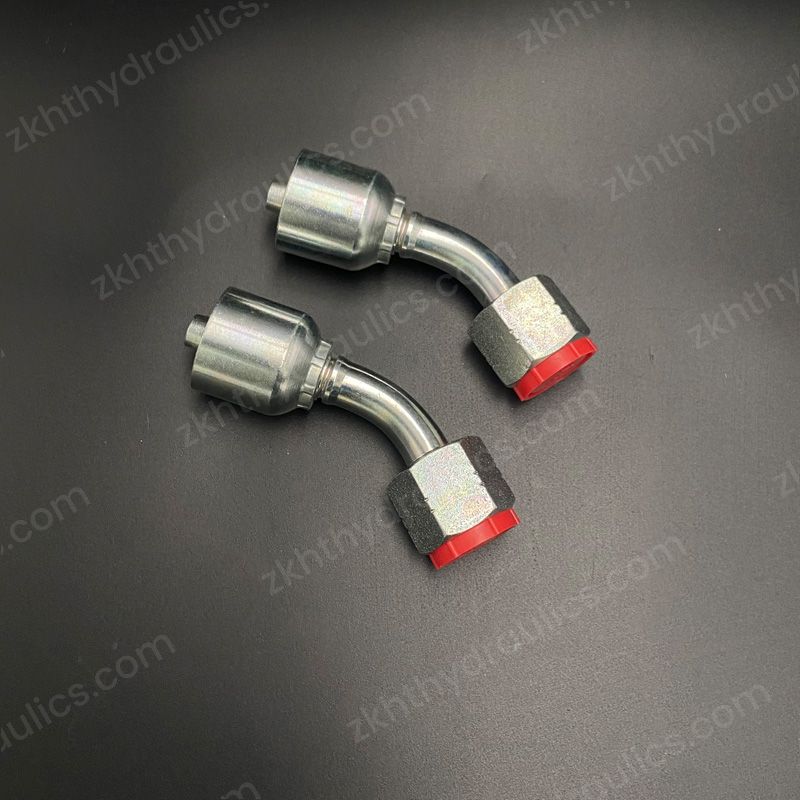

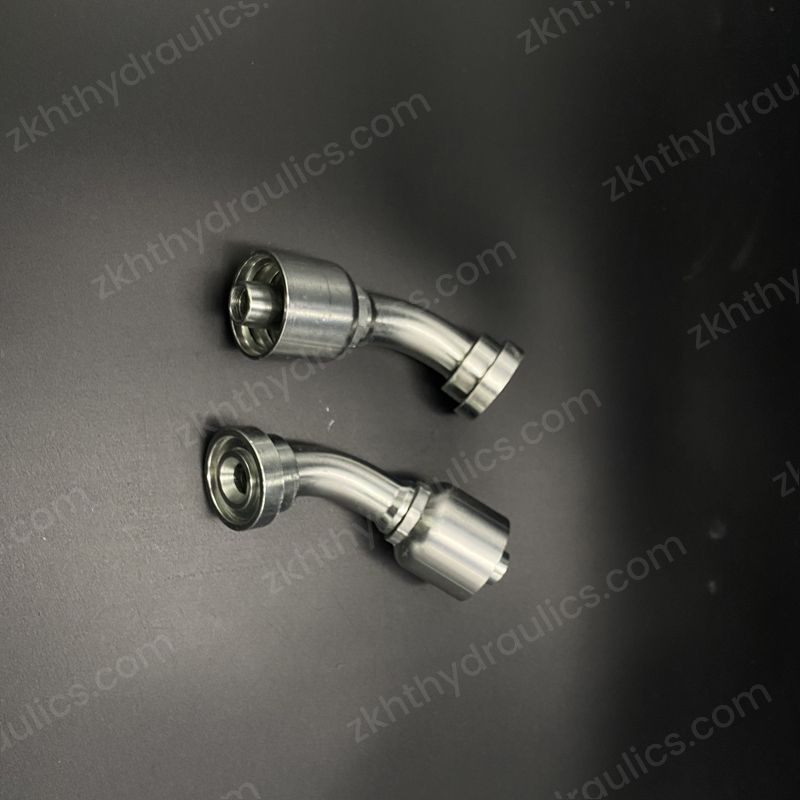

3. Huatai SAE 100R2 One-Piece Fittings – Technical Overview

Material

• High-grade carbon steel

• Optional stainless steel 304 / 316 for corrosive environments

Surface Treatment

• Cr3 zinc plating (≥120–240h salt spray optional)

• Enhanced anti-corrosion coating for offshore use

Size Range

• DN06 (1/4")

• DN08 (5/16")

• DN10 (3/8")

• DN12 (1/2")

• DN16 (5/8")

• DN19 (3/4")

• DN25 (1")

Full dimensional charts available for bulk buyers.

Thread Options

• BSP

• NPT

• JIC 37°

• Metric DIN

• ORFS

• Custom thread per technical drawing

Pressure Compatibility

Designed to meet SAE 100R2 working pressure ratings when crimped according to specified diameter tolerances.

4. Engineered for High-Pressure Applications

Because SAE 100R2 operates in higher pressure ranges, fitting design must ensure:

• Optimized stem serration geometry

• Controlled ferrule wall thickness

• Precise crimp diameter window

• Stable impulse resistance

Huatai conducts:

• Pull-off testing

• Hydrostatic pressure testing

• Batch dimensional inspection

• Thread gauge verification

• Plating thickness testing

These controls are critical for OEM buyers requiring stable long-term supply consistency.

5. Built for Bulk & OEM Procurement Programs

SAE 100R2 fittings are frequently purchased in:

• Large wholesale volume

• Monthly OEM production contracts

• Distributor container loads

• Infrastructure project supply agreements

Huatai supports bulk supply with:

• 5,000 – 100,000+ pcs per size production capability

• Mixed-size pallet loading

• Private label packaging

• Laser marking with OEM brand

• ERP-compatible labeling

For recurring large quantity buyers, annual contract pricing programs are available.

6. Assembly Technical Support for Hose Manufacturers

For professional hose assemblers, crimp data precision is critical.

Huatai provides:

• Recommended crimp diameter charts

• Skive / non-skive application guidance

• Compatibility consultation for major crimping machine brands

• Technical support for production optimization

This reduces:

• Scrap rate

• Rework cost

• Field leakage complaints

In large-scale hydraulic workshops, even 1% defect reduction translates to significant cost savings.

7. Typical Applications

SAE 100R2 hose one-piece fittings are widely used in:

• Excavators

• Bulldozers

• Concrete pumps

• Drilling rigs

• Industrial hydraulic presses

• Agricultural heavy machinery

These environments require stable high-pressure performance and durable crimp retention.

8. Why Bulk Buyers Choose Huatai

Stable Production Capacity

Automated CNC turning lines ensure consistency across high-volume orders.

Tight Tolerance Control

Dimensional stability improves crimp repeatability.

Competitive Factory Pricing

Direct manufacturer supply supports wholesale profitability.

Fast Lead Times for Large Orders

Structured production scheduling supports container-level shipments.

OEM Customization

Custom thread, special coating, and brand marking available.
