HT Hydraulics Since 1987 Hydraulic Hose Fitting -Interlock One Piece Fittings
METRIC FEMALE 24°CONE O-RING H.T. ISO 8434-1--DIN 3865
PRODUCT INTRODUCTION
HT Hydraulics supplies Metric 24° Cone O-Ring Interlock Hose Fittings for high-pressure hydraulic hose assemblies used in construction machinery, mining equipment, agricultural machinery, metallurgical equipment, petroleum machinery, wind power systems and industrial hydraulic equipment.

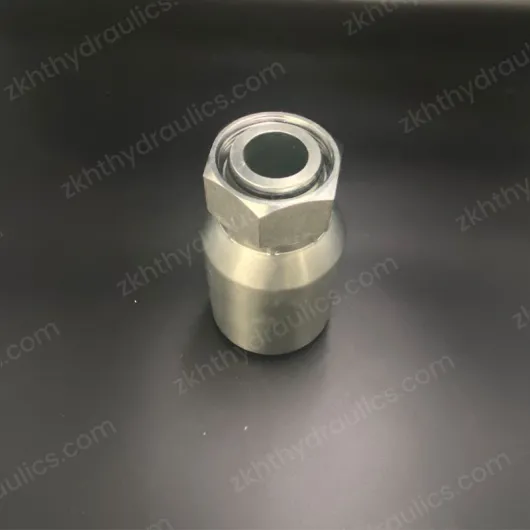

This fitting is designed with a Metric Female 24° Cone O-Ring H.T. structure and an interlock one-piece hose fitting design. It is suitable for hydraulic systems that require metric thread compatibility, stable sealing performance and strong hose retention under pressure.
The 20513RW Metric 24° Cone O-Ring Interlock Hose Fitting is designed according to ISO 8434-1 / DIN 3865 connection requirements, making it suitable for DIN metric hydraulic systems and heavy-duty hose assembly applications.
| H20513RW | HT Hydraulics Since 1987 Hydraulic Hose Fitting -Interlock One Piece Fittings | ||||||
| METRIC FEMALE 24°CONE O-RING H.T. ISO 8434-1--DIN 3865 | |||||||
 | Part No. | Thread | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | B | W | |||
| 20513-30-12RW | M30*2 | 20 | 12 | 81 | 33 | 36 | |
| 20513-36-12RW | M36*2 | 20 | 12 | 80 | 32 | 46 | |
| 20513-36-16RW | M36*2 | 25 | 16 | 87 | 36 | 46 | |
| 20513-42-16RW | M42*2 | 25 | 16 | 87 | 35.5 | 50 | |
| 20513-42-20RW | M42*2 | 32 | 20 | 106 | 42 | 50 | |
| 20513-52-20RW | M52*2 | 32 | 20 | 102 | 38 | 60 | |
| 20513-52-24RW | M52*2 | 40 | 24 | 105 | 41.5 | 60 | |
The main advantage of this product is its straight metric connection structure. It is suitable when the hose needs to connect directly to the port without changing direction.
| Direct Connection Need | How This Fitting Helps |
|---|---|
| Hose and port are aligned | Provides a clean straight connection |
| Equipment requires compact hose layout | Reduces unnecessary routing complexity |
| Hydraulic assembly needs standardized metric connection | Matches DIN metric hydraulic systems |
| Buyer needs repeatable hose assembly production | Supports stable batch crimping and assembly |
| Hydraulic system needs leakage control | 24° cone O-ring structure improves sealing reliability |
| Heavy-duty hose requires stronger retention | Interlock structure improves hose grip after proper assembly |
| Advantage | Product Design | Buyer Value |
|---|---|---|
| Metric Female Connection | Designed for DIN metric hydraulic systems | Suitable for machinery using metric hydraulic ports |
| 24° Cone O-Ring Seal | Combines cone sealing with O-ring assistance | Helps improve sealing stability and reduce leakage risk |
| Straight Fitting Structure | Direct hydraulic hose connection | Suitable for clean hose routing and aligned installation |
| H.T. Heavy Type Design | Built for heavy-duty hydraulic applications | Supports high-pressure and severe working conditions |
| Interlock One Piece Structure | Integrated fitting body and hose tail design | Helps improve assembly consistency and sourcing efficiency |
| DIN / ISO Compatibility | ISO 8434-1 / DIN 3865 standard | Easier replacement, matching and international sourcing |
| Multiple Size Options | Covers common metric thread and hose bore sizes | Supports different hydraulic hose assembly requirements |
The Metric 24° Cone O-Ring connection is widely used in hydraulic systems that require stable sealing and metric thread compatibility. It is especially suitable for DIN hydraulic systems used in European-style machinery, industrial hydraulic equipment and heavy-duty mobile equipment.
| Structure | Function |
|---|---|
| Metric Female Thread | Connects with compatible metric male hydraulic fittings |
| 24° Cone Seat | Provides the main sealing interface |
| O-Ring | Supports additional sealing stability and leakage control |
| Straight Body | Allows direct hose-to-port connection |
| Interlock Hose Tail | Works with hydraulic hose and ferrule for strong hose retention |
This structure helps buyers reduce leakage problems caused by incorrect sealing surfaces, poor thread matching or unstable hose assembly.
This product is different from 45° and 90° hose fittings. It is best used when the hose does not need angle correction and can be routed directly from the hydraulic port.
| Suitable Situation | Why Choose This Product |
|---|---|
| Direct metric port connection is required | Straight structure connects hose and port directly |
| Hydraulic system uses DIN metric fittings | Metric female 24° cone O-ring design matches DIN systems |
| Hose routing space is sufficient | Straight fitting avoids unnecessary angle changes |
| Batch hose assembly production is required | One-piece interlock structure supports consistent assembly |
| High-pressure spiral hose is used | Interlock tail helps improve hose retention |
| Replacement of metric hydraulic fittings is needed | Standard thread options support maintenance sourcing |
| Hose Type | Typical Use | Suitability |
|---|---|---|
| R13 Hydraulic Hose | Very high-pressure hydraulic systems | Suitable |
| R15 Hydraulic Hose | Heavy-duty high-pressure systems | Suitable |
| 4SP Hydraulic Hose | Four-wire spiral hydraulic hose assemblies | Suitable |
| 4SH Hydraulic Hose | Heavy-duty four-wire spiral hose assemblies | Suitable |
| Skived Hydraulic Hose | Hose prepared for interlock crimping | Suitable |
| Spiral Hydraulic Hose | Construction, mining and industrial hydraulic systems | Suitable |
Correct matching between the hose, fitting, ferrule and crimping parameters is important for final hose assembly performance.
| Application Area | Typical Equipment | Why This Fitting Is Used |
|---|---|---|
| Construction Machinery | Excavators, loaders, bulldozers, cranes, concrete pumps | Provides stable metric hydraulic hose connections for heavy-duty operation |
| Mining Machinery | Mining trucks, drilling rigs, crushers, underground equipment | Supports high-pressure hose assemblies under vibration and shock load |
| Agricultural Machinery | Tractors, harvesters, sprayers, lifting systems | Suitable for metric hydraulic systems used in outdoor mobile equipment |
| Metallurgical Equipment | Rolling mills, hydraulic presses, clamping systems | Supports stable hydraulic power transmission in continuous operation |
| Petroleum Equipment | Oilfield machinery, drilling systems, pressure equipment | Provides reliable sealing for demanding hydraulic circuits |
| Wind Power Systems | Hydraulic pitch systems, service equipment, maintenance systems | Suitable for metric hydraulic hose assemblies requiring stable sealing |
| Industrial Hydraulic Systems | Hydraulic power units, machine tools, injection molding machines | Supports direct hose routing and standardized metric connections |
| Fitting Type | Best Used For | Buyer Selection Logic |
|---|---|---|
| Straight Metric 24° Cone O-Ring Interlock Hose Fitting | Direct hose connection with aligned port direction | Choose when the hose can run straight from the metric port |
| 45° Metric Female Hydraulic Hose Fitting | Moderate angle correction and compact routing | Choose when the hose needs to avoid interference or reduce bending stress |
| 90° Metric Female Hose Fitting | Sharp direction change in limited space | Choose when the hose must turn immediately after the port |
If the hydraulic port direction and hose routing path are aligned, the straight 20513RW metric interlock fitting is usually the cleaner and more direct option.
| Option | Available Choice | Recommended Use |
|---|---|---|
| Standard Material | Carbon steel | General hydraulic machinery, industrial equipment and mobile machines |
| Optional Material | Stainless steel | Marine, chemical, offshore or corrosive environments |
| Standard Surface Treatment | Zinc plating | General anti-corrosion protection |
| Enhanced Surface Treatment | Zinc-nickel plating | Higher corrosion resistance requirements |
| Custom Treatment | Special coating or plating | Project-based hydraulic systems or harsh environments |
HT Hydraulics can support standard 20513RW series supply as well as custom metric interlock hose fitting production. If your project requires special thread sizes, special dimensions, stainless steel material, enhanced coating or drawing-based production, we can help evaluate and manufacture according to your requirements.
Custom options include:
Metric thread customization
Hose bore size matching
Carbon steel or stainless steel material
Zinc plating or zinc-nickel plating
Special anti-corrosion surface treatment
Drawing-based production
Sample-based development
Bulk supply for hose assembly factories
Packaging customization for distributors
HT Hydraulics supplies hydraulic hose fittings, interlock fittings, adapters and hose assembly components for global customers. For buyers sourcing Metric 24° Cone O-Ring Interlock Hose Fittings, we provide standard products, custom production and stable batch supply.
We provide metric female fittings, JIC fittings, BSP fittings, ORFS fittings, NPT fittings, SAE flange fittings and related interlock hose fitting series.
We focus on thread precision, cone seat quality, O-ring sealing area, hose tail dimensions and surface treatment consistency.
The 20513RW series is suitable for high-pressure hydraulic hose assemblies used in demanding machinery and industrial applications.
We can produce according to drawings, samples, special thread requirements, material requirements and surface treatment needs.
Our team can help confirm thread size, hose bore, seal type, fitting series, hose compatibility and order specifications before production.
It is a hydraulic hose fitting with a metric female 24° cone O-ring sealing structure and an interlock hose tail. It is used for high-pressure hydraulic hose assemblies requiring metric connection compatibility and reliable sealing.
This product corresponds to the 20513RW / H20513RW series on the HT Hydraulics product page.
The product page marks this fitting as ISO 8434-1 / DIN 3865.
This product is a straight metric female fitting for direct hose routing. The 45° metric female fitting is used when the hose needs an angled routing direction to avoid interference or reduce bending stress.
It is commonly used with high-pressure hydraulic hoses such as R13, R15, 4SP, 4SH and other skived or spiral hydraulic hoses.
Yes. The interlock design and H.T. structure make it suitable for heavy-duty hydraulic hose assemblies, provided that the hose, fitting, ferrule and crimping parameters are correctly matched.
Carbon steel is commonly used for standard hydraulic systems. Stainless steel can be supplied for marine, offshore, chemical or corrosive environments.
Yes. HT Hydraulics can support custom production according to thread size, hose bore, material, surface treatment, drawing or sample.
Please provide the part number, thread size, hose bore, dash size, hose type, material, surface treatment, quantity and any drawings or sample photos.
Looking for reliable Metric 24° Cone O-Ring Interlock Hose Fittings for high-pressure hydraulic hose assemblies? HT Hydraulics can supply standard 20513RW series fittings and customized metric interlock hose fitting solutions for construction machinery, mining equipment, agricultural machinery, metallurgical equipment, petroleum machinery, wind power systems and industrial hydraulic applications.
Send us your thread size, hose bore, dash size, hose type and order quantity. Our team will help confirm the right metric interlock hose fitting and provide a quotation for your project.
