Introduction:

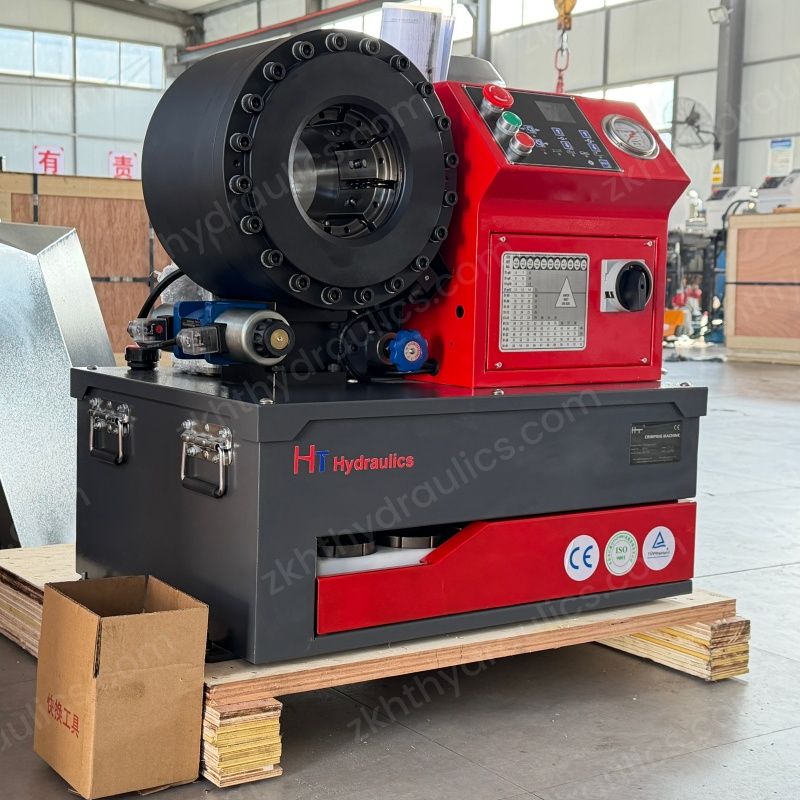

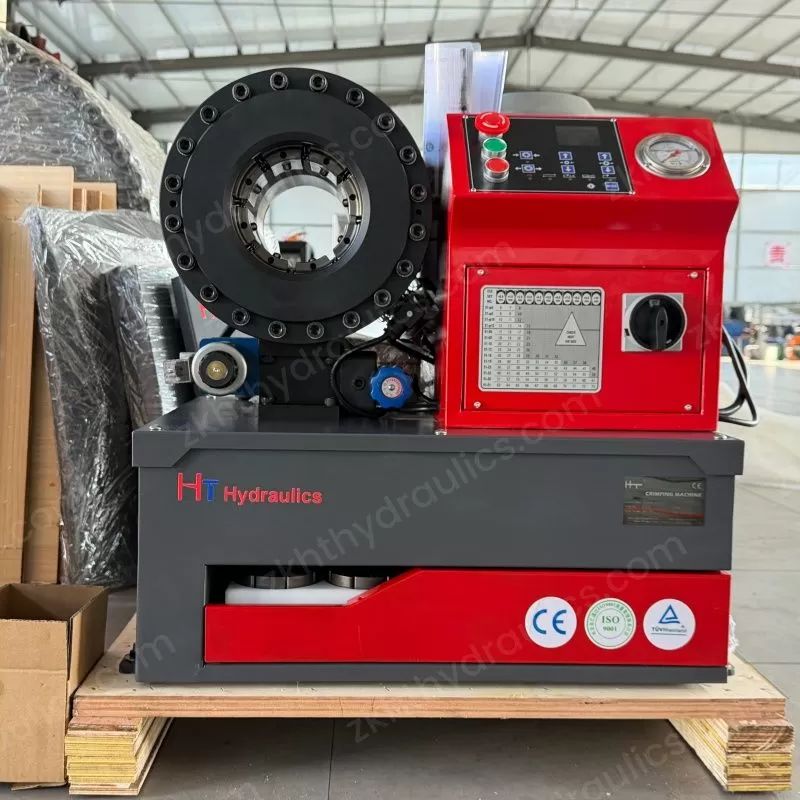

The HT120 Hydraulic Crimping Machine is engineered for heavy-duty performance and unmatched reliability. Designed to meet the rigorous demands of industrial applications, it delivers powerful, precise, and consistent crimps for a wide range of cable and connector types. Whether for electrical, telecommunications, or heavy equipment manufacturing, the HT120 is your robust and efficient crimping solution.
·Customized Dies
·OEM Service
PRODUCT INTRODUCTION
The HT120 hydraulic hose crimping machine is engineered for heavy-duty industrial applications, delivering consistent, high-strength, and precise crimping every time. Perfect for:
Industrial workshops with in-house hose assembly
Hose manufacturing and service centers
Maintenance facilities for heavy machinery and vehicles
Engineering, agricultural, and construction equipment maintenance
The HT120 Hydraulic Crimping Machine is engineered for heavy-duty performance and unmatched reliability. Designed to meet the rigorous demands of industrial applications, it delivers powerful, precise, and consistent crimps for a wide range of cable and connector types. Whether for electrical, telecommunications, or heavy equipment manufacturing, the HT120 is your robust and efficient crimping solution.
·Massive 2000kN (200-Ton) Crimping Force: Handles the most demanding crimping tasks with ease, ensuring solid, low-resistance connections every time.
·Wide Crimping Range (3mm to 80mm): Offers exceptional versatility for various cable lugs, sleeves, and connectors, from fine to very heavy-duty.
·Digital Intelligent Control: Features an advanced digital control system for precise operation and repeatable, high-quality results. The interface allows for easy monitoring and control of crimping parameters.
·Quiet & Efficient Operation: Equipped with a Noiseless Pump and a high-efficiency Siemens 3-Phase Motor, operating at a low 60dB(A) noise level for a more comfortable and productive work environment.

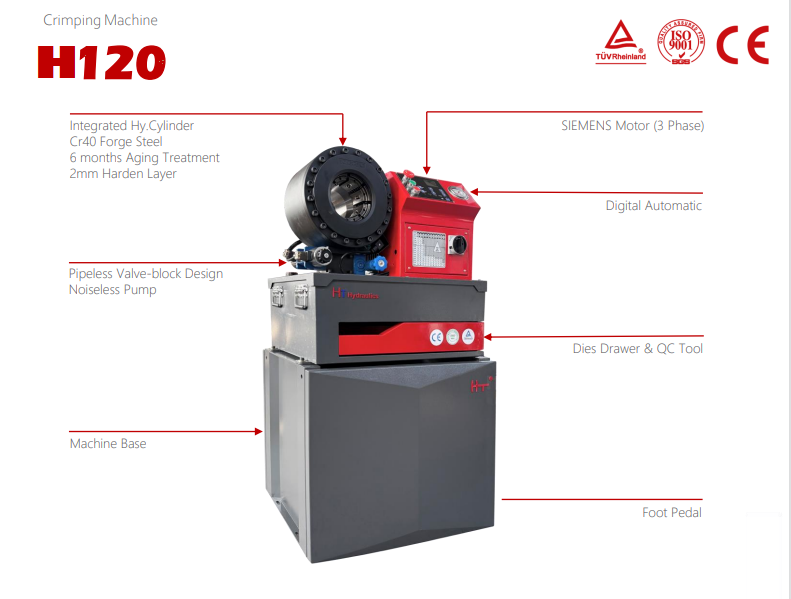

·Unmatched Durability: Core components are forged from Cr40 Forge Steel, undergo a 6-month aging treatment, and feature a 2mm harden layer. This superior construction guarantees extreme longevity and resistance to wear and fatigue.
·Innovative Pipeless Valve-Block Design: Minimizes the risk of hydraulic leaks, simplifies maintenance, and ensures superior system stability and reliability.
·Integrated & User-Friendly Design:
a.Integrated Hydraulic Cylinder & Machine Base for compact, stable operation.
b.Convenient Dies Drawer & QC Tool Storage keeps essential tools organized and within reach.
c.Foot Pedal Operation provides hands-free control for enhanced safety and efficiency.
Workshop hose assembly and production
Engineering machinery and excavator maintenance
Factory internal hydraulic line assembly
Agricultural machinery repair
Heavy-duty equipment manufacturing
Oil, gas, and industrial equipment maintenance
| Technical Data | |
| Crimping Range | 3-80mm (1/8”-3 1/6”) |
| Hose Size | 2”, 4SP (ID 51mm) |
| Max. Opening | +25mm (1”) |
| Opening Without Dies | 118mm (4 5/8”) |
| Master Dies Length | 80mm (3 1/6”) |
| Crimping Force | 2000kN (200T) |
| Control |  Digital |
| Motor Power | 3kW / 4kW |
| Standard Voltage | 110V~480V |
| Noise Level | 60dB(A) |
| Weight | 248kg |
| L×W×H | 650*500*730mm |
| Dies No. | ID | L |
| 51-φ3* | 3 | 35 |
| 51-φ6* | 6 | 35 |
| 51-φ8* | 8 | 35 |
| 51-φ10* | 10 | 35 |
| 51-φ12* | 12 | 35 |
| 51-06 | 15 | 45 |
| 51-08 | 18 | 45 |
| 51-10 | 20 | 45 |
| 51-13 | 23 | 50 |
| 51-16 | 26 | 65 |
| 51-19 | 29 | 65 |
| 51-25 | 36 | 80 |
| 51-32 | 46 | 80 |
| 51-38 | 51 | 80 |
| 51-51 | 63 | 80 |
| 51-64* | 70 | 80 |
| *Optional die sets. | ||
We understand that standard solutions don't always fit unique challenges. That's why we offer:
Customized Dies: Tailored to your specific connector or application.
OEM Service: Let us customize the machine to meet your brand and functional requirements.
12-month warranty
Lifetime technical support
Spare parts availability
Operation training and video guides
Remote troubleshooting available
Q1: Can HT120 crimp different brands of hoses and connectors?
A1: Yes, it is compatible with most international standard hoses and connectors.
Q2: Does the machine require professional installation?
A2: No complex installation is needed; simply connect to power and it is ready for use.
Q3: Can the dies be customized?
A3: Yes, dies can be tailored to special sizes or unique applications.
Q4: Is HT120 suitable for continuous high-frequency operation?
A4: Absolutely, designed for 24/7 industrial production.
Q5: Does it have CE or ISO certifications?
A5: Certificates can be provided on request.
The HT120 is more than a tool; it's an investment in productivity, quality, and safety. Its robust construction, powerful performance, and intelligent features are designed to withstand the test of time in the toughest industrial environments, maximizing your operational uptime and ensuring flawless crimps.
Whether you require just the Heavy-Duty Hydraulic Hose Crimping Machine or the entire package—machine, fittings, adapters, dies, and operator training—we offer a flexible, end-to-end solution for any hose assembly demand. Contact Huatai today to get a quote, download datasheets, or schedule a demo.
